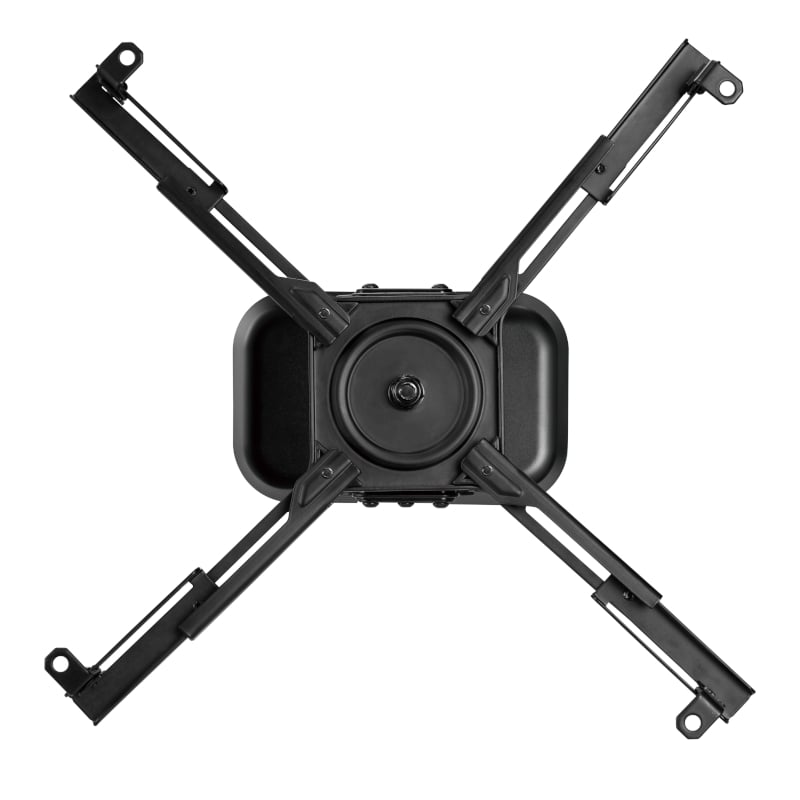

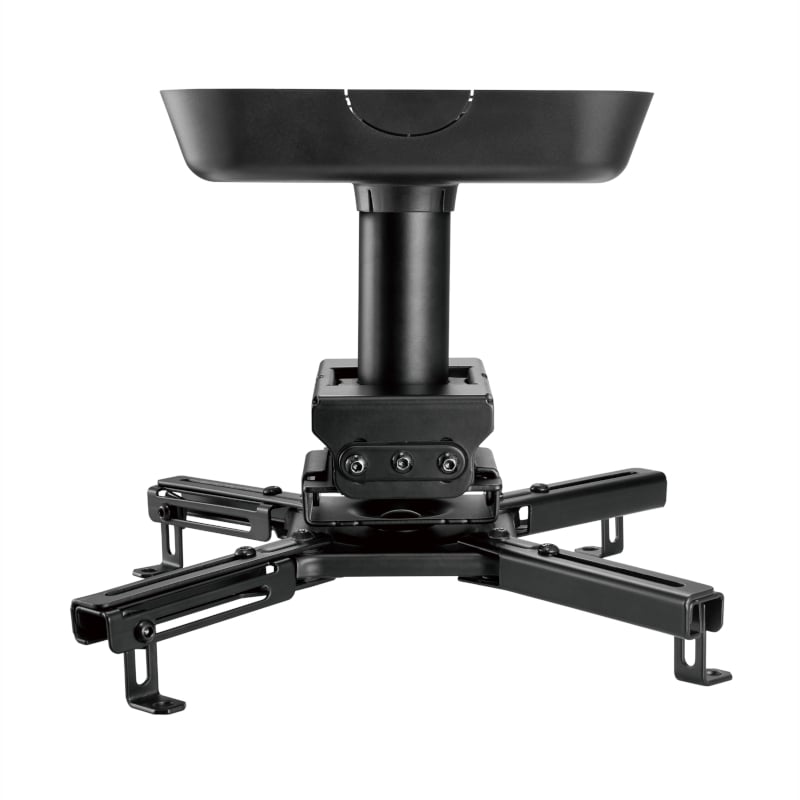

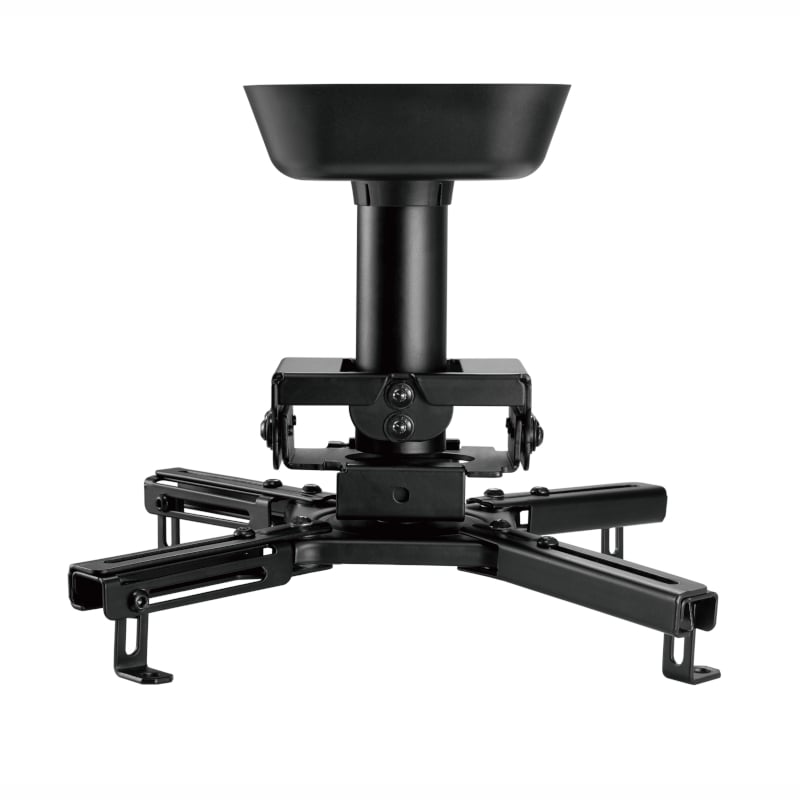

WINX MOUNT Simple Projector Bracket

Description

The WINX Mount Max Ceiling Projector Bracket is designed to securely support most projectors, with a maximum weight of 45 kilograms. The sturdy bracket is ideal for classrooms, boardrooms, and conference rooms. It includes a flexible mechanism that allows you to adjust the angle of the projector to find the perfect viewing position by rotating it up to 180 , tilting it forward and back up to 20 , and swiveling it up to 8 left and right. The installation process is made quick and easy with a wide range of mounting hole configurations.

FEATURES:

• Supports projectors up to 45kg.
• Includes swivel, tilt, and 180 rotation mechanism.
• Adjustable mounting options.
• Detachable mounting cover.

SPECIFICATIONS:

• Material: Plastic, steel
• Surface finish: Powder coating
• Mounting range: 130 – 470mm
• Max weight: 45kg
• Installation: Ceiling mounted
• Cable management: Built-in
• Tilt range: Up to 20 forward and back
• Swivel range: Up to 8 left and right
• Projector rotation: Up to 180 clockwise and counterclockwise
• Extension: 245mm

WHAT S IN THE BOX:

• WINX MOUNT Max Ceiling Projector Bracket Black x1
• Installation Kit x1
• User manual x1
